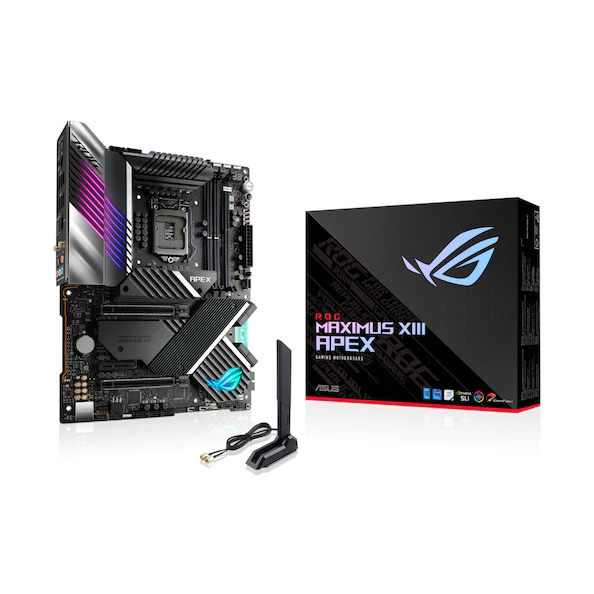

Asus ROG Maximus XIII Apex

James Cusworth / 2 years ago

CPU	Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset	Intel Z590
Memory	2 x DIMM, Max. 64GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC) /4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC) /3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture
Onboard Graphics Outputs	none
PCI Slots	2 x PCIe 4.0/3.0 x16 slots – Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 modes – Intel® 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 modes 1 x PCIe 3.0 x4 slot
Storage	M.2_1 slot (Key M), type 2242/2260/2280 – Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280 – Intel® 11th processors supports PCIe 4.0 x4 mode – Intel® 10th processors supports PCIe 3.0 x4 mode DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
Networking	Onboard WiFi 6E (802.11ax), Bluetooth v5.2 Intel® 2.5 Gb Ethernet
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Connectivity	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (5 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB: Total 9 ports 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Internal Ports	1 x Thunderbolt 4 header 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x 6-pin PCIe Graphics Card connector 1 x 80 Light Bar jumper 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x FS Mode switch 1 x LN2 Mode jumper 1 x Pause switch 8 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switch 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x V_LATCH switch
Form Factor	ATX- 30.5cm x 24.4cm
