Gigabyte B760 Gaming X AX DDR4 Motherboard Review
Peter Donnell / 2 years ago

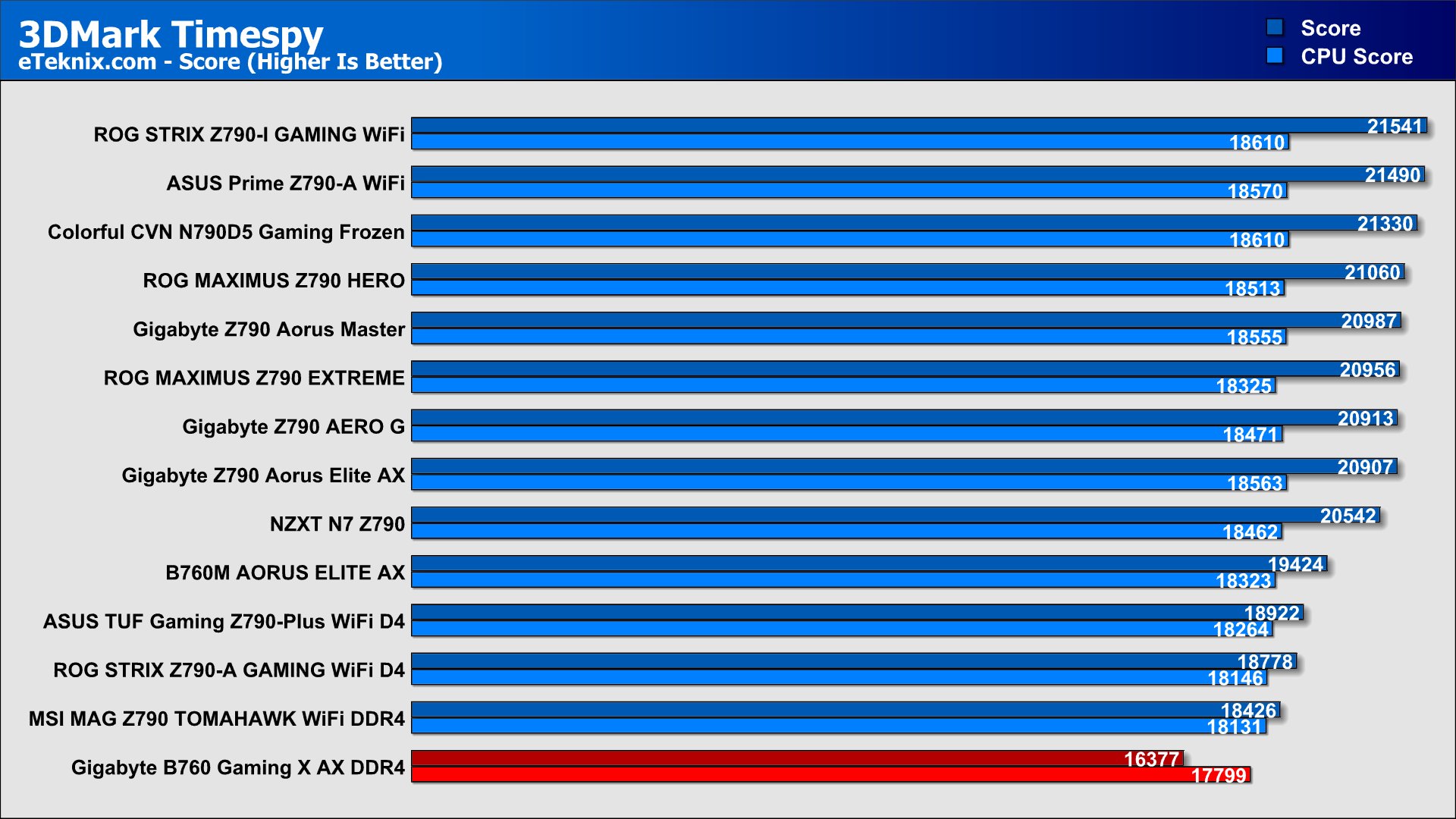

3DMark Timespy Extreme
Time Spy Extreme is a new 4K DirectX 12 benchmark test, available in 3DMark Advanced and Professional Editions. You don’t need a 4K monitor to run it, but you will need a GPU with at least 4 GB of dedicated memory. With its 4K Ultra HD rendering resolution, Time Spy Extreme is an ideal benchmark test for the latest high-end graphics cards. The CPU test has been redesigned to let processors with 8 or more cores perform to their full potential
3DMark is available on Steam here.
A lower result isn’t all that surprising here, as it’s one of only two DDR4 motherboards tested, so there is definitely some reduction in bandwidth. However, it’s nor too far behind the more expensive models, which is nice.

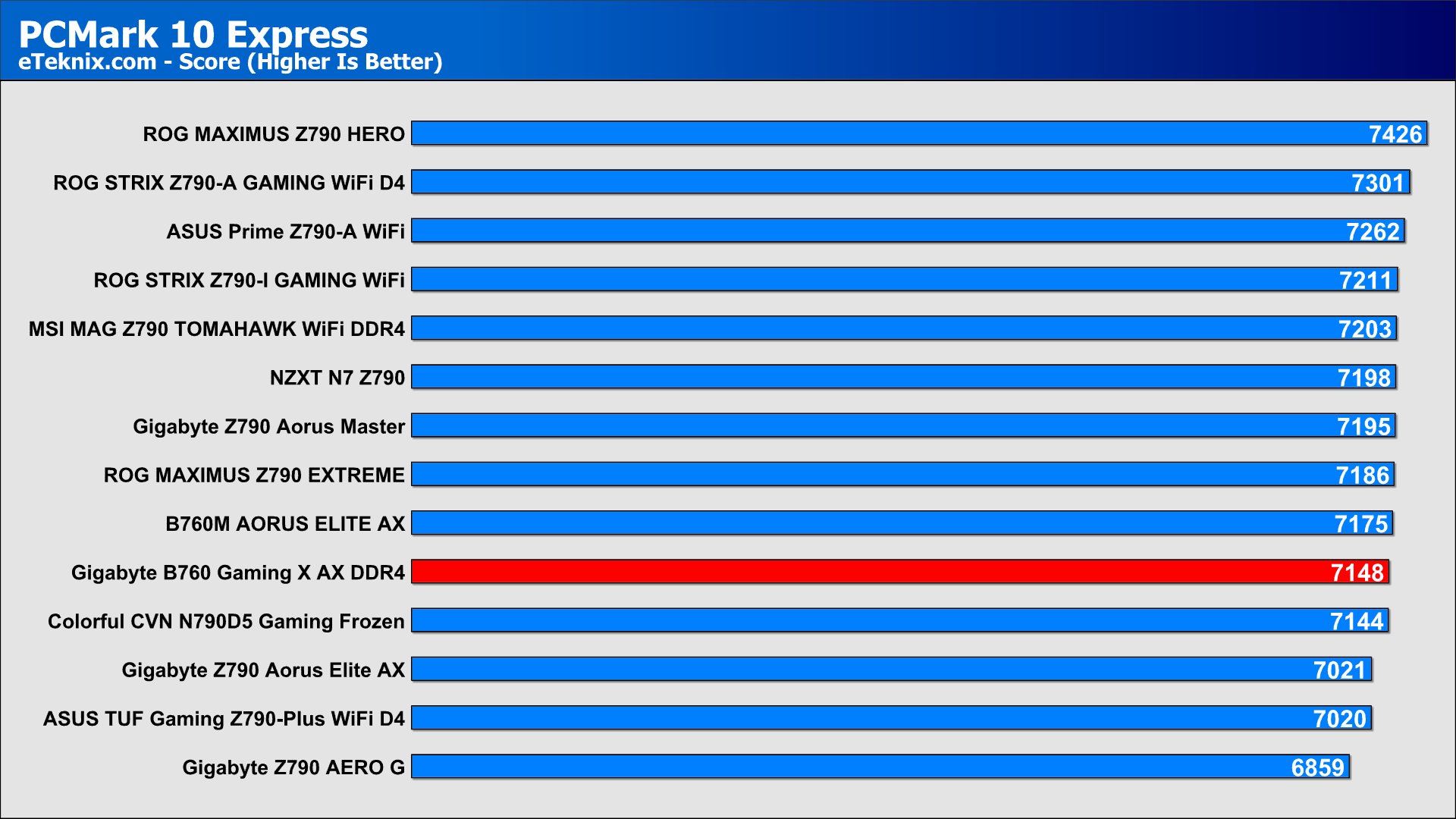

PCMark 10 Express
PCMark 10 features a comprehensive set of tests that cover the wide variety of tasks performed in the modern workplace. With a range of performance tests, custom run options, Battery Life Profile, and new Storage benchmarks, PCMark 10 is the complete PC benchmark for the modern office.
Available now on Steam.
A little more competitive here, so while GPU performance may be lower, overall system performance is still actually similar to DDR5 models.

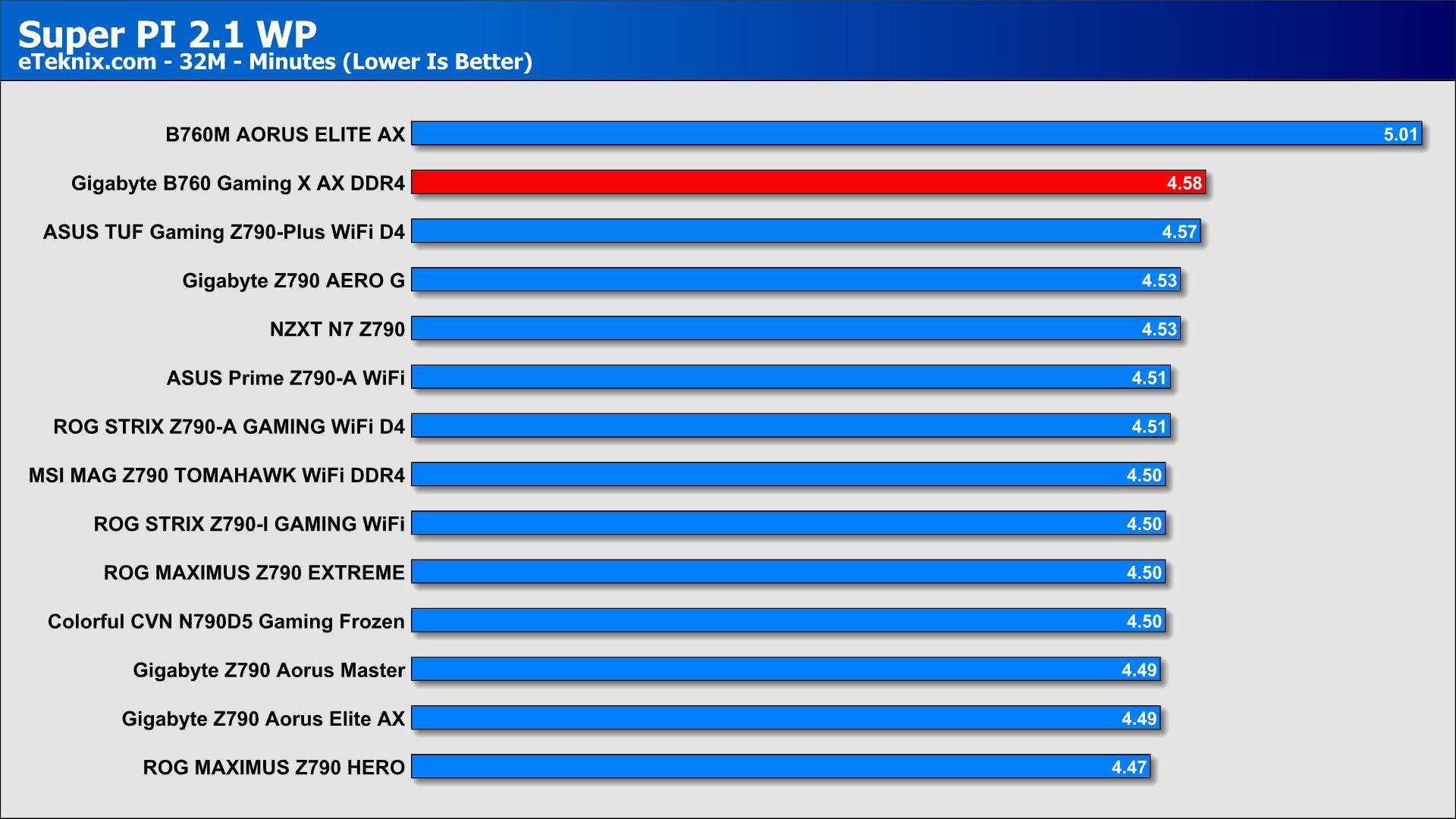

Super PI 2.1 WP
Super PI is a single-threaded benchmark that calculates pi to a specific number of digits. It uses the Gauss-Legendre algorithm and is a Windows port of a program used by Yasumasa Kanada in 1995 to compute pi to 232 digits
Available now on Super PI.
The B760 chipset is clearly slower here, but honestly, that’s what we would have expected anyway.

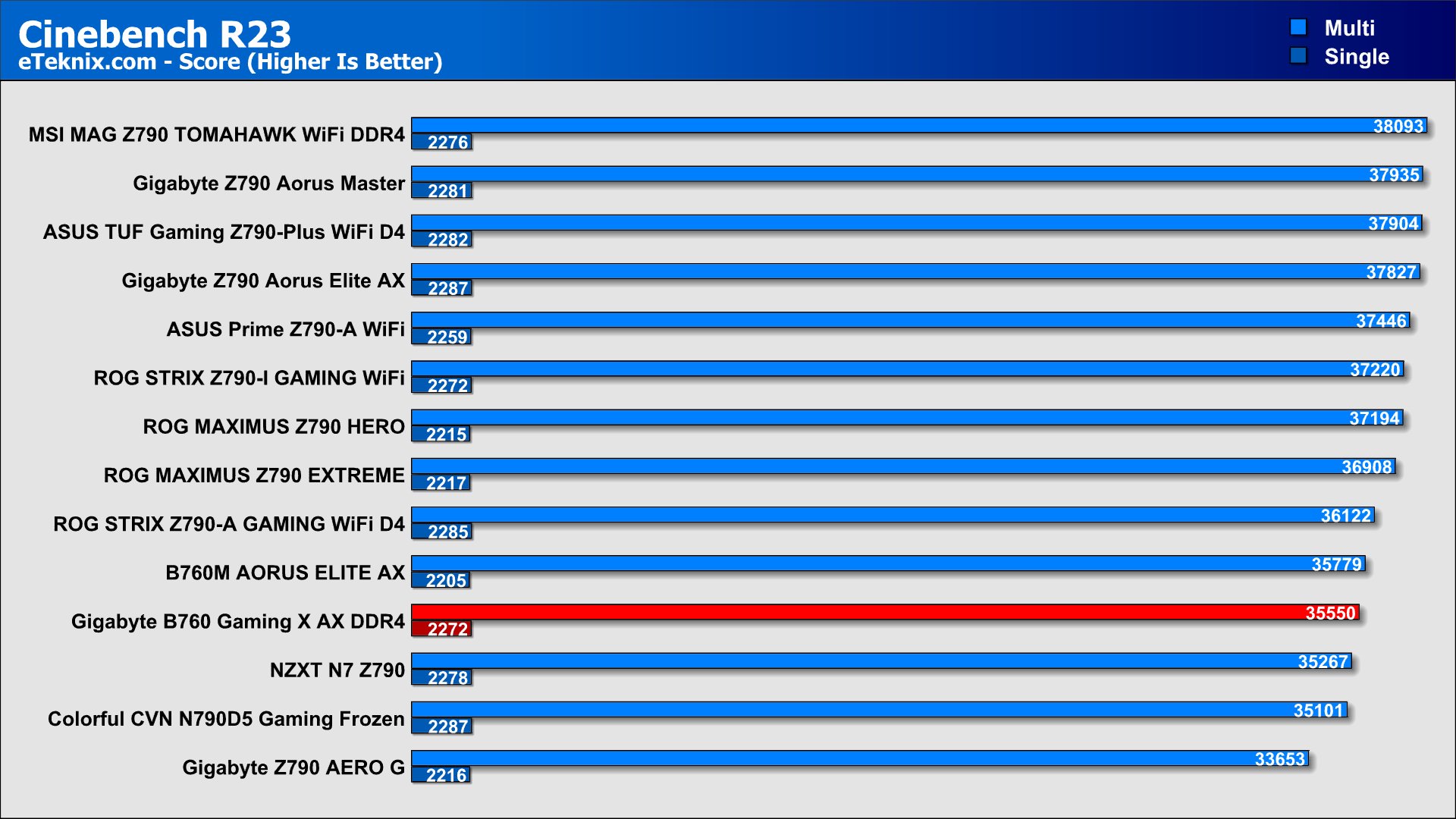

Cinebench R23
Cinebench is a real-world cross-platform test suite that evaluates your computer’s hardware capabilities. Improvements to Cinebench Release 23 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D’s ability to take advantage of multiple CPU cores and modern processor features available to the average user. Best of all: It’s free.
Available now on Maxon.
Again, not a huge score for Cinebench, but given the cheaper nature of this board, I think that can be expected.

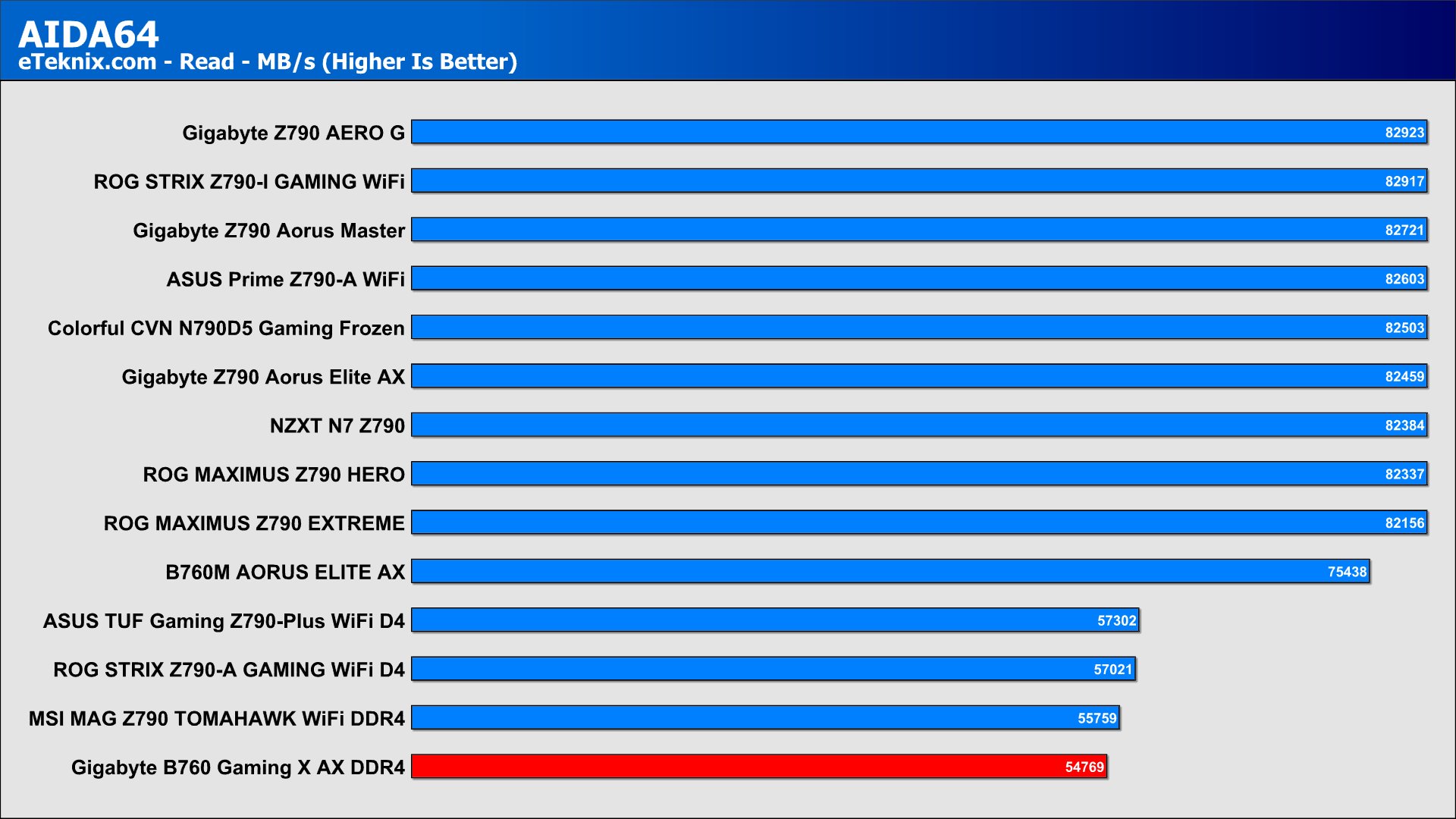

AIDA64
AIDA64 is a system information, diagnostics, and auditing application developed by FinalWire Ltd that runs on Windows, Android, iOS, Windows Phone, Tizen, Chrome OS and Sailfish OS operating systems. It displays detailed information on the components of a computer.
Available now on AIDA64.

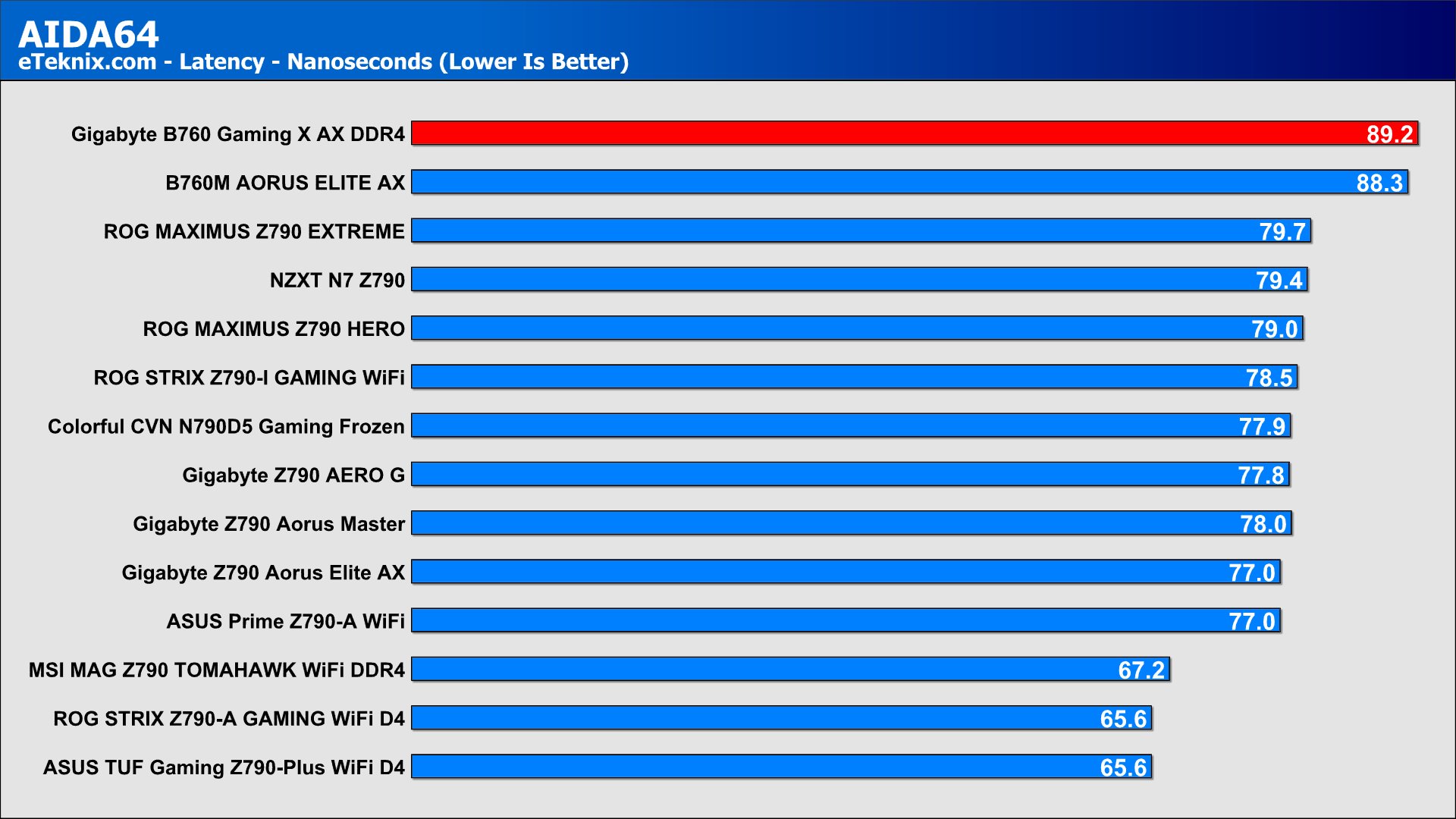

Higher latency and lower throughput are to be expected here too since it runs on DDR4 and most of the other tested were DDR5. Yes, it’s slower, but it’s what you should expect from the older format.
