Thermaltake Intros Small Form Factor Toughpower Platinum ATX 3.1 PSUs

Jakob Aylesbury / 8 months ago

Thermaltake has today launched its new Toughpower SFX Platinum series offering high wattage power supplys with strong reliability for the small form factor markets which includes support for the latest PCIe 12V-2×6 connectivity.

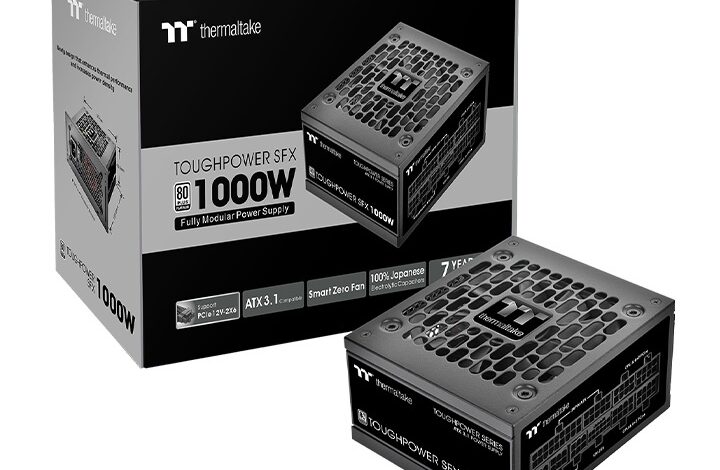

Thermaltake Toughpower SFX Platinum

The Toughpower SFX Platinum is a new PSU designed to be installed in small form factor cases and supports the growing trend of compact setups, though it can be used with an ATX case using the included adapter. It comes with the latest Intel SFX 12 V 4.1 and ATX 12 V 3.1 standards which include a native PCIe 12V-2×6 modular interface for RTX 40 series GPUs. It is offered with an 80 Plus Platinum Efficiency rating as well as wattages of 750W, 850W and 1000W.

Users can expect high reliability through the use of 100% high quality Japanese 105°C/221°F electrolytic capacitors, as well as extremely strict specifications to guarantee a stable operation. It incorporates a ＜30 mV low ripple noise design, voltage regulation ＜±2%, and 17 ms and hold up time. Its Platinum rating ensures a 92% efficiency and the unit is equipped with a 90mm fluid dynamic bearing fan with built-in Smart Zero mode for a quieter operation.

Features

Compact Power, Limitless Performance
The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12 V 4.1 and ATX 12 V 3.1 standards. With its native PCIe 12V-2×6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 Plus Platinum efficiency but also guarantees stability, durability, and reliability.

No Matter the Case Size, We’ve Got You Covered
The dimensions of the Toughpower SFX Platinum measure 125 mm (W) x 63.5 mm (H) x 103.8 mm (D).
It comes with an SFX to ATX adapter bracket as an accessory which gives users more options when choosing the ideal case for the build.

Fully Compatible with ATX 3.1 Standards
Toughpower SFX Platinum series is fully compatible with ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.1 Ready
Toughpower SFX Platinum series comes with a PCIe 12V-2×6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower SFX Platinum 1000 W can deliver up to 600 W for PCIe 12+4pin graphics cards. (750 W’s 12+4pin cable: delivers up to 300 W, 850 W’s 12+4pin cables: deliver up to 450 W)

Made to Comply with the Latest Graphics Cards
Ready to supply graphics cards according to their different ways of connections, the Toughpower SFX Platinum series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin slots for AMD graphics cards & some RTX 40 series graphics cards, it also comes with 1 x 12V-2×6 connector for RTX 40 series cards that with a PCIe 12+4pin connector.

Be Smart, Stay Quiet
Equipped with a 90 mm fluid bearing fan for superior airflow. Plus, the built-in Smart Zero Fan feature keeps it silent until the load hits 30%, reducing unwanted noise.

80 Plus Platinum Certified
80 Plus Platinum certification means the Toughpower SFX Platinum series converts power efficiently, saves energy through its high efficiency up to 92%, resulting in lower power loss and heat buildup inside the power supply.

＜30 mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30 mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ＜±2%
The voltage regulation is stricter than Intel’s standard +5%, -7% for major rails and ±10% for -12 V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

17 ms and Hold Up Time
During a power interruption, your computer might shut down or reboot. We make sure that the SFX Platinum series will deliver at least 17 ms at 80% workload, without system reboot or resetting.

More Stable than Ever
100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Built-in Industrial Grade Protection
Built with industry grade protections to protect the hardware: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection).

80 Plus Platinum Certified and Intel C6/C7 States Ready
Toughpower SFX Platinum series saves energy through its high energy efficiency up to 92% and is certified to 80 Plus Platinum. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.

Price and Availability

Toughpower SFX Platinum will be available for purchase in April 2024 via the Thermaltake worldwide network of authorized retailers and distributors. It is backed by a seven-year warranty and supported by the Thermaltake worldwide customer service and technical support network.

Toughpower SFX Platinum series MSRP:
